Optical Zonu Corp

About us

 Optical Zonu Corporation (or “OZC”) is a privately owned, Los Angeles-based designer and manufacturer of Fiber Optic Components for Analog Transmission, Digital Transmission, Business Class Services and Coarse Wavelength Division Multiplexing. OZC is the leading supplier of Full Duplex, Single Fiber, Single Wavelength Transceivers and RF over Fiber Optic Links. OZC maintains important strategic and global relationships in the Industry and cooperates with major vendors and suppliers of optical, communication and electronic devices, to enable rapid production of cutting-edge solutions.

Index

1. RF over Fiber

2.  System Solutions

3.  Digital Products

Pro-grade RF over Fiber transmitters and transceivers



Our RF over Fiber link modules are trusted by industry leaders and are very cost-effective. Most of these analog over fiber links (one-way and two-way) can theoretically work for most applications, such as Satcom, GPS, WiMAX/LTE, and DAS, but we do have recommendations for their optimum application.



Analog RF over Fiber Application PDF
We also offer a full MNS allowing for multiple site management at no additional cost to our Optical Zonu customers. The NMS supports network overview and allows the user to drill down to specific modules with full web UI and GUI in addition to the SNMP that can be integrated with the customer’s existing infrastructure.


How RF over Fiber Links Work


Converting analog RF signals into light, then transporting the optical signal over fiber optic cable, is a complex process which requires a high degree of technical know-how and expertise. Incoming RF signals from the antenna or signal source are fed into Optical Zonu’s RF over Fiber Transmitter/Transceiver Module via the 50 Ohm RF connector. The Module contains RF signal conditioning and provides complex impedance matching between 50 Ohm input impedance and the Laser, Laser Bias Control, APC, Monitoring and Alarm electronics. The Transmitter Module utilizes an Intensity Modulation scheme to convert RF signals into light. This modulated light is then transported through an optical fiber to the Optical Receiver Module. The Receiver Module converts the modulated light back into an RF signal. The recovered RF signal is again complex impedance matched and amplified before it becomes available at the output of the Receiver Module.



All RFoF products come with...


1.  30 Day money back Guarantee.

2.  One Year Warranty.

3.  One year technical support.

See our Featured RF over Fiber Systems
See our Family of RF over Fiber Links:

Featured RF over Fiber Systems:

GPS Over Fiber Transport

GPS systems typically consist of an active rooftop antenna, a GNSS / GPS receiver and a length of coaxial cable to connect them. A challenge arises, however, when the distance between the rooftop antenna and the cellular base station equipment (usually in the basement) is greater than 300 ft. Coaxial cable runs of over 300 ft are not practical for most GNSS / GPS receiver systems, so a fiber optic link is required at these or greater distances, and Optical Zonu’s fiber optic links are some of the most trusted and cost-effective links in the industry.

Read More

BTS-DAS Fiber Transport

 When you need to connect your base station to the DAS head end but they are not collocated, the Optical Zonu OZ9500 Series BTS-DAS Fiber Transport Link provides the efficient solution. The OZC solution is designed specifically for this application. That means it takes up minimum space, uses the minimum number of fibers and has the minimum impact on the overall system bottom line. The robust design meets all base station reliability requirements.

Read More

Public Safety Wireless

There are numerous Public Safety and Private Radio RF source and booster products that can provide two-way radio service coverage for indoor or blocked locations over coax – but making an efficient connection between these components can sometimes be problematic because of distance or cabling routing issues. Optical Zonu offers a range of RF over fiber optic links that support VHF, UHF, 700 MHz, 800 MHz and 900 MHz. This is a perfect solution for point-to-point and distributed systems for Public Safety, private SMR and government wireless networks.

Read More

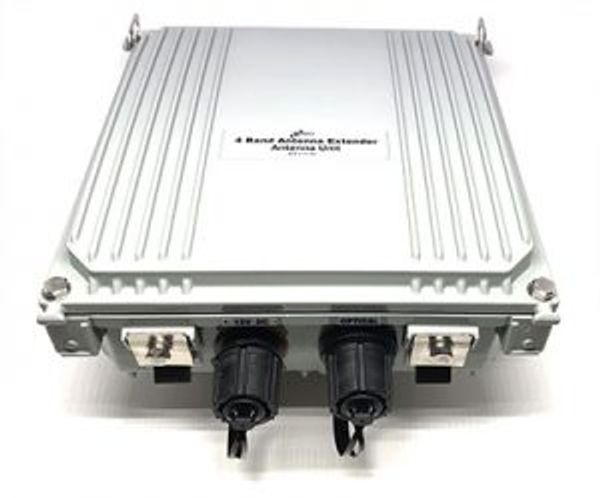

RFoF Antenna Extender

 There are numerous Public Safety and Private Radio RF source and booster products that can provide two-way radio service coverage for indoor or blocked locations over coax – but making an efficient connection between these components can sometimes be problematic because of distance or cabling routing issues. Optical Zonu offers a range of RF over fiber optic links that support VHF, UHF, 700 MHz, 800 MHz and 900 MHz. This is a perfect solution for point-to-point and distributed systems for Public Safety, private SMR and government wireless networks.

Read More

Family of RF over Fiber Links:

Radiation pattern testing, Avionics, Satcom 0Z101

WiFi 802.11g/n/ac, analog signal distribution, delay line, phase array OZ516

DAS, Satcom, Cell Rptr, GPS, analog signal distribution 0Z510

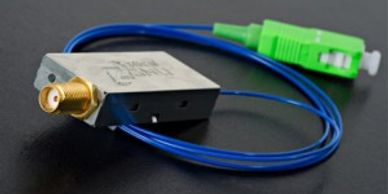

 The OZ10x OEM fiber optic transmitter and receiver modules are broadband RF over Fiber standalone optical links enclosed board level assemblies that are well-suited for low size/weight/power applications. The standard RF band transported is 30 – 3000 MHz. Optional extended bandwidths of 1 MHz (for lower roll-off) and/or 6 GHz (for upper roll-off) are also available. The OZ10x features a linear optically isolated DFB laser diode operating at 1310 nm or 1550 nm or a high performance InGaAs photodiode. The standard RF interface is 50 Ohm SMA. A primary application for the small OZ10x OEM module is to facilitate antenna radiation pattern measurements. The optical modules enable the measurement of radiation patterns of small antennas without the EM interference of coaxial cables.



fIND OUT MORE

DAS, Satcom, Cell Rptr, GPS, analog signal distribution 0Z510

WiFi 802.11g/n/ac, analog signal distribution, delay line, phase array OZ516

DAS, Satcom, Cell Rptr, GPS, analog signal distribution 0Z510

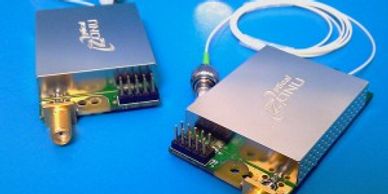

 The OZ510 OEM fiber optic transmitter and receiver modules are Optical Zonu’s standard building block broadband RF over Fiber board level optical link assemblies. The OZ510 transports RF signals in the frequency range 30 MHz to 3 GHz. Lower roll-offs down to 10 kHz are available. An integrated LNA may be added to the transmitter to optimize noise figure and input/output IP3 for a variety of RF power levels and optical loss budgets. The OZ510 features a linear optically isolated DFB laser diode or a high performance InGaAs photodiode. The standard RF interface is 50 Ohm SMA however some packaging requirements benefit from a surface mount 50 Ohm SMB connector (contact the factory). The OZ510 module is powered from +12 VDC. Variations of this OEM form factor also support GPS, IRIG-B/1PPS/TTL, and low phase noise clock distribution.

FIND OUT MORE

WiFi 802.11g/n/ac, analog signal distribution, delay line, phase array OZ516

WiFi 802.11g/n/ac, analog signal distribution, delay line, phase array OZ516

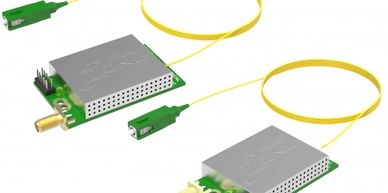

 The OZ52x OEM fiber optical link transmitter and receiver modules are Optical Zonu’s enhanced building block broadband RF over Fiber board level assemblies. The OZ52x transports RF signals in the frequency range 30 MHz to 3 GHz. Lower roll-offs down to 10 kHz are available. Upper roll-offs of 4 GHz and 6 GHz are available. An integrated +20 dB LNA or a +40 dB dual LNA may be added to the transmitter to optimize noise figure and input/output IP3 for a variety of RF power levels and optical loss budgets. The transmitter and receiver both feature digital attenuators and module RF gain can be adjusted via serial I2C. The OZ52x features a linear optically isolated DFB laser diode or a high performance InGaAs photodiode. The standard RF interface is 50 Ohm SMA and the OZ52x module is powered from +12 VDC.



FIND OUT MORE

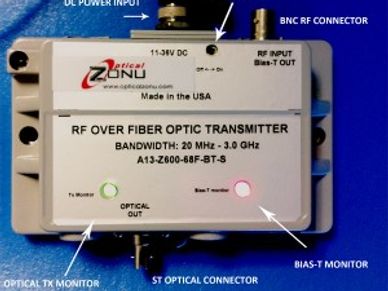

DAS, Satcom, Cell Repeater, GPS, analog signal distribution, delay line 0Z600

Wifi 802.11g/n/ac, analog signal distribution, delay line, phase array radar 0Z816

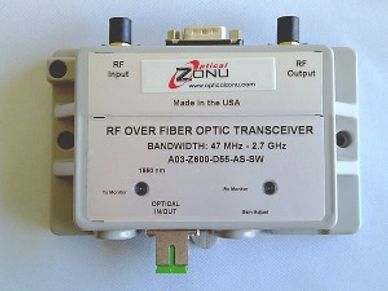

OZ600 is a low-cost broadband (3GHz) RF over Fiber or analog over fiber transceiver. A pair of OZ600 transceivers will create a two-way bidirectional RF to Optical and Optical to RF link. OZ600 can also be configured as individual linear (analog) Transmitter (Tx) or Receiver (Rx) units, if necessary. OZ600 is an excellent alternative to using coaxial cable systems and offers significant improvements in the transport of high frequency RF signals in their native format reliably across a broad range of frequencies. It has low Noise Figure (NF) and high Spurious Free Dynamic Range (SFDR), with operational frequencies from 47 MHz to 3.0 GHz, or more.




FIND OUT MORE

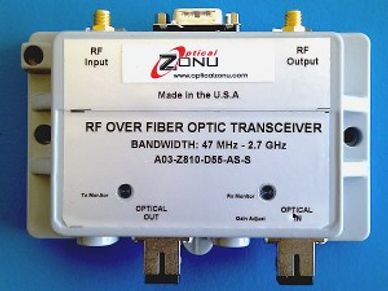

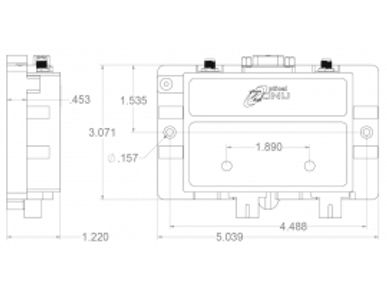

DAS, Satcom, Cell Repeater, GPS, analog signal distribution, delay line OZ810

Wifi 802.11g/n/ac, analog signal distribution, delay line, phase array radar 0Z816

Wifi 802.11g/n/ac, analog signal distribution, delay line, phase array radar 0Z816

  ll OZ810 modules are equipped with a Manual Gain Control (MGC) via a potentiometer accessible from the top of the box by a small screw driver (or “tweeker”) to ease field integrations. Standard optical connector is SC/APC for low back reflection, but FC/APC is also available. OZ81x Rx features a high performance InGaAs photodiode and Tx is based upon linear Isolated DFB or FP Lasers operating at 1.3 µm or 1.5 µm (CWDM LD are available for higher system integration). Average Automatic Power Control (AAPC) is incorporated for optimal optical power stability over the full temperature range. RF interface is via a 50 Ohm SMA connector. Alarm monitoring, RS232 interface and power input is via male DB-9 connector and +12 Volts DC is required to operate this device.

FIND OUT MORE

Wifi 802.11g/n/ac, analog signal distribution, delay line, phase array radar 0Z816

Wifi 802.11g/n/ac, analog signal distribution, delay line, phase array radar 0Z816

Wifi 802.11g/n/ac, analog signal distribution, delay line, phase array radar 0Z816

  The OZ816 is a high performance broadband optical transceiver with wide Dynamic Range designed for RF over Fiber (RFoF) Optics applications. A pair of OZ816 transceivers will create a two-way bidirectional RFoF link. It may also be configured as individual Transmitter or Receiver units. This solution is designed in a rugged dust tight cast metal housing, in a compact package. The OZ816 offers optional WDM integration, Internally, for bidirectional transmission on a single strand of SM fiber. These Links with bandwidths of up to 6GHz have High Spurious Free Dynamic Range (SFDR) supporting applications such as CBRS LTE-U, 802.11a as well as, other wireless standards within the 6 GHz band.



FIND OUT MORE

Temperature stable analog signal distribution, delay line, antenna remoting OZ1603

Temperature stable analog signal distribution, delay line, antenna remoting OZ1603

Temperature stable analog signal distribution, delay line, antenna remoting OZ1603

 The OZ1603 is an Ultra Broadband Fiber Optics Transceiver, with exceptionally high Spurious Free Dynamic Range (SFDR) for RF over Fiber applications that require premium and Fix RF performance over wide temperature range. Our Transceiver was designed with a built‐in Thermoelectric Cooler (TEC) to assure a stable level of RF performance over a wide range of temperature variations. A pair of OZ1603 transceivers will create a two-way bidirectional RF to Optical and Optical to RF link. OZ1603 may also be configured as individual Transmitter (Tx) or Receiver (Rx) units if necessary. The OZ1603 is packaged in a rugged dust‐tight Cast Metal Housing with optional Integral WDM for bidirectional transmission on a single SMF‐28 fiber.





Find out more

Temperature stable analog signal distribution, delay line, antenna remoting oz1606

Temperature stable analog signal distribution, delay line, antenna remoting OZ1603

Temperature stable analog signal distribution, delay line, antenna remoting OZ1603

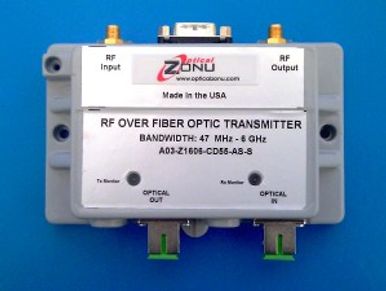

 OZ1606 is a premium grade, ultra-broadband, RF over Fiber or analog over fiber transceiver. The OZ1603 was designed for applications that demand very high SFDR and low NF. The Laser Diode in the module is temperature controlled, with a Thermoelectric Cooler (TEC), to assure a High level of RF performance and fixed gain over a wide range of ambient temperature variations. A pair of OZ1603 transceivers will create a two-way bidirectional RF to Optical and Optical to RF link. The OZ1603 can also be configured as individual linear (analog) Transmitter (Tx) or Receiver (Rx) units if necessary. It is an excellent alternative to using coaxial cable systems and offers significant improvements in the transport of high frequency RF signals in their native format reliably across broad range of frequencies. It has low Noise Figure (NF) and high Spurious Free Dynamic Range (SFDR), with operational frequencies from 47 MHz to 6.0 GHz.

Find out more

DVB-T & Audio Link

Temperature stable analog signal distribution, delay line, antenna remoting OZ1603

 Broadcast professionals covering live events at large venues encounter many challenges, one of those challenges is how to increase the range of their RF camera, wireless microphone and PL system equipment. Optical Zonu’s Fiber Optic Link offers the solution. This Linear or analog fiberoptic transmitter is designed to increase the broadcaster’s coverage by transporting RF signals between RF audio and video antennas to their receivers transparently over long distances. The fiber optic link can carry any RF signal within the range of 20 MHz to 3 GHz (optional extended bandwidth of 20 MHz to 6 GHz available) with virtually no loss, making it a better choice than traditional coaxial cable links.







Find out more

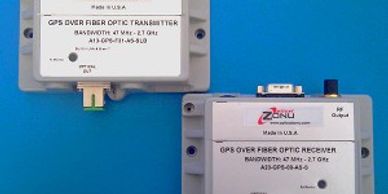

GNSS / GPS over Fiber Link L1, and L2 GPS link

VSAT, Satcom, Oil and Gas Platforms, Shipboard Comm

Optical fiber provides a cost-effective solution for long coaxial cable runs in GNSS / GPS systems. The Optical Zonu GNSS / GPS over Fiber for Network Sync System allows signals to be carried from an antenna to a GNSS / GPS receiver with minimal signal degradation over a non-conducting dielectric glass media.  This system provides a completely transparent cross-site connection between an antenna and receiver.  As is the case in many types of in-building environments, networks require accurate clock synchronization. By utilizing broadband RF linear (analog) over Fiber Optics (RFoF) Technology, Optical Zonu GNSS / GPS over Fiber Optics Links provide easy to operate, low cost and reliable solutions that enable GNSS / GPS signal distribution using fiber optic cable.

Find out more

VSAT, Satcom, Oil and Gas Platforms, Shipboard Comm

VSAT, Satcom, Oil and Gas Platforms, Shipboard Comm

VSAT, Satcom, Oil and Gas Platforms, Shipboard Comm

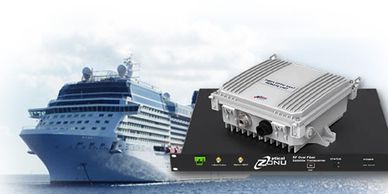

The Optical Zonu Maritime VSAT Link is the first RF over Fiber link especially made for the harsh conditions of maritime deployment and for popular VSAT antenna systems. It enables high-performance over long distance L-band video/voice/data communications and antenna control transmission over single optical fiber.


The L Band Satcom Fiber Transport Link provides a simple, cost-effective and reliable RF connection between your satellite antenna and modem in those instances where coaxial cable is impractical.






Find out more

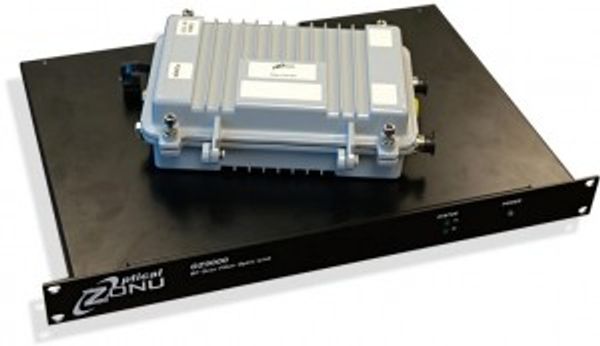

RF over Fiber Subsystems

OZ9500 -RFoF Subsystem

OZ9800 – RFoF Subsystem

OZ9800 – RFoF Subsystem

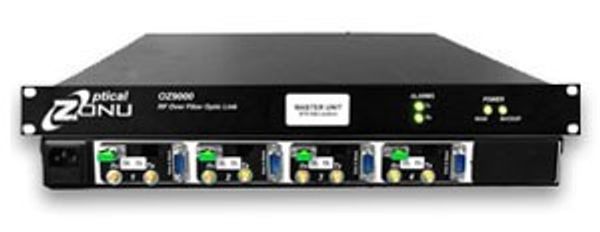

 The OZ9500 series is populated using OZ510, OZ514 or OZ516 linear optical modules in a 1U 19” rack mount chassis. The Chassis can be AC or DC powered. This custom-built product is capable of carrying up to 5 pairs (Tx and Rx combo). You may also request that each OZ9500 carry only Transmitters (Tx) or Receivers (Rx) or any mix there-off. The OZ9500 has the capacity to hold up to 9 Tx or 9 Rx modules. Standard operational frequency ranges between 47 MHz and 3 GHz but it can be extended to range from 10 KHz to 6 GHz. This chassis can include built in CWDM or WDM modules. The OZ9500 chassis can be built with local SNMP based management for remote monitoring of the chassis itself and all its internal modules as well as connectivity to manage other OZ9500 chassis (via USB Hub).

find out more

OZ9800 – RFoF Subsystem

OZ9800 – RFoF Subsystem

OZ9800 – RFoF Subsystem

 he OZ9800 series is populated using OZ600, OZ810, OZ816, OZ1603 or OZ1606 linear optical stand-alone modules in, a 1U 19” rack mount chassis. The modules can carry RS232 in addition to the broadband RF signal (on the same fiber). Each module has an individual DB-9 connector on the back panel that provide monitoring and alarms in addition to the RS232 signals. Links can be single fiber with built-in WDM. This custom-built product is capable of carrying up to 5 modules – each of which can be transceivers (TxRx) or only a Transmitter (Tx) or Receiver (Rx). Standard operational frequency ranges between 47 MHz and 3 GHz but it can be extended to range from 10 KHz to 6 GHz for both Cooled DFB or standard lasers.




find out more

CWDM RFoF GbE Data Link

OZ9800 – RFoF Subsystem

CWDM RFoF GbE Data Link

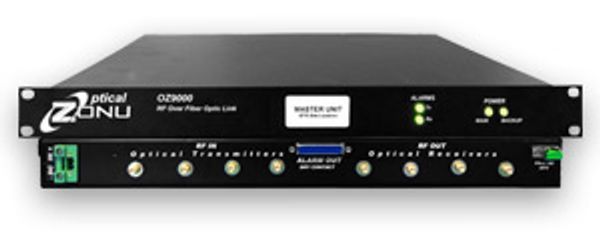

 This EIA 310-D Standard 19” 1U rack-mounted unit is a highly integrated RFoF System. It includes 4 Bi-directional RF links (4 Tx and 4 Rx) and one External Gigabit Ethernet Data Channel via Optical Port, Integrated CWDM Multiplexer/De-multiplexer, for wave division multiplexing and Optical Fiber Management. This is a perfect solution for applications where a limited number of fiber strands are available. It may also be configured to transport all signals in one direction for up to eight (8) channels. The RFoF Fiber Optic Transceivers are Very Wide Dynamic Range with low frequency response ripple designed for High Linearity and Low Noise RF over Fiber Optics applications.



find out more
