Ulyssix Technologies, Inc. is dedicated to providing high quality, innovative DSP-based communications products to the telemetry and satellite communications markets. Our skilled staff has been pioneering creative DSP based solutions since 1982. Ulyssix is committed to providing leading edge hardware and software solutions and exceptional long-term support. In recent years, we have seen a disturbing trend in the telemetry community. Suppliers have decided that certain segments of this market are not worthy of their time and effort. The result is that test engineers are forced into implementing technologies and products that do not perfectly satisfy their requirements. Ulyssix Technologies was founded in 2000 on the guiding principle that the test engineer should be the one who defines the products needed and Ulyssix will provide the solution.

Our Focus

Ulyssix is focused on the development of board level products for the telemetry community. These types of products can be easily installed into an existing host computer eliminating the need for additional portable or rack mount equipment. They also provide high speed access to digitized data from the bus for analysis or storage. Our current product offerings, including Receivers, Bit Syncs/Frame Syncs, PCM Decommutators, Simulators, and legacy Digital Baseband FM Demodulators which are described on the Products Page of the website. These products were developed taking direction from the input we have received from our customers. The course of future product development will continue to be charted by the Ulyssix customers.

Index

1.  PCM Product

2.  RF Products

3.  FM/FM Products

4.   Data Link Analyzers

5.  Custom Telemetry Solutions

6.  Ulyssix Downloads


ULYSSIX PRODUCTS & SERVICES

Product

Ulyssix™ products specialize in Digital Signal Processing, which provides fully customizable DSP algorithms by using the latest technology in Altera field programmable gate arrays (FPGAs).

Among our products lies an impressive list of both board level and integrated systems. Ulyssix also offers several integration options for our board level prodcuts to fit any applications needs.



We offer board level, chassis and software solutions at Ulyssix, including:


SERVICES

In addition to the extensive product line, Ulyssix™ offers a multitude of services. Over the years, our expertise in various engineering fields has led Ulyssix™ to be trusted as a valuable engineering resource for many government and commercial programs alike.



Services Offered:


  • Systems Engineering
  • Hardware Design
  • Digital Signal Processing FPGA Design

                     Advanced Encoding and Decoding Algorithms

                     Advanced Math Processing Software

                     Engineering Equipment Integration and Testing

  • Training in our many fields of expertise

PCM Product

Bit Syncs/Frame Syncs

Bit Syncs/Frame Syncs

Bit Syncs/Frame Syncs


Tarsus3-PCIe™

40 Mbps PCM Processor

  • 3rd Generation totally integrated PCM Processor for PCIe
  • Digital Bit Sync/Frame Sync/PCM Decom/PCM Simulator/IRIG Time Code Reader
  • Advances Ulyssix’s PCM processing capability by using the PCIe half length form factor
  • Runs under both the Ulyssix ALTAIR software and optionally using DEWESoft software suite​




Return to Top

Decommutators

Bit Syncs/Frame Syncs

Bit Syncs/Frame Syncs


Tarsus3-cPCI™

40 Mbps PCM Processor

  • 3rd Generation totally integrated PCM Processor for cPCI/PXI 3U housings
  • Digital Bit Sync/Frame Sync/PCM Decom/PCM Simulator/IRIG Time Code Reader
  • Advances Ulyssix’s PCM processing capability by using the cPCI/PXI 3U form factor
  • Runs under both the Ulyssix ALTAIR software and optionally using DEWESoft software suite​

PCM Simulators

Bit Syncs/Frame Syncs

Frame Archivers


GryphonPCM™ Series

Dual Channel Bit Sync/Frame Sync/Archiver/IRIG Time Reader

  • 40 Mbps Digital Bit Synchronizer
  • Frame Synchronizer and Decom
  • Up to four PCM channels per unit
  • Frame Archive capability
  • Ch10 recording, playback, and  UDP broadcast
  • TMoIP
  • Front LCD graphic display and keypad for local control
  • Ethernet interface
  • Uses Tarsus3-02™ boards
  • Compact 2U rackmount housing with dual capacitive touch screens

Frame Archivers

Frame Archivers

Frame Archivers


Tarsus3-cPCI™

40 Mbps PCM Processor

  • 3rd Generation totally integrated PCM Processor for cPCI/PXI 3U housings
  • Digital Bit Sync/Frame Sync/PCM Decom/PCM Simulator/IRIG Time Code Reader
  • Advances Ulyssix’s PCM processing capability by using the cPCI/PXI 3U form factor
  • Runs under both the Ulyssix ALTAIR software and optionally using DEWESoft software suite​

Return to Top

PCM Software

Frame Archivers

PCM Software


ALTAIR Software Suite

  • Real Time Checkout Decom Software
  • User friendly card interface
  • Frame Archive Playback Capability
  • Includes Flash Burn FPGA programming tool
  • Runs under .NET Framework
  • Automated Installation and Setup
  • PCM Simulator
  • Plug-and-Play hardware recognition

RF Products

Bald Eagle RF-PCIe™

Bald Eagle RF-PCIe™

Bald Eagle RF-PCIe™


Dual Multi-Mode Receivers with Diversity Combiner and Single PCM Modulating Multi-Mode RF Signal Generators


  • Dual Channel C/S/L/P/IF  bands (fully independent) FM/SOQPSK demodulation modes
  • Future FPGA firmware updates for BPSK/QPSK/AUQPSK
  • Direct connection to Ulyssix Tarsus3 for full PCM processing from RF to bits
  • No filter tuning or preventive maintenance required
  • Optional Single Channel Modulating RF Signal Generator C/S/L/P/IF bands (fully independent)
  • User-friendly and intuitive software program included with optional DEWESoft full Acquisition and Analysis software



Technical Specifications:  Click Here


Return to Top

Bald Eagle RF-cPCI™

Bald Eagle RF-PCIe™

Bald Eagle RF-PCIe™


 Dual Multi-Mode Receivers with Diversity Combiner and Single PCM Modulating Multi-Mode RF Signal Generators


  • Dual Channel C/S/L/P/IF bands (fully independent) FM/SOQPSK demodulation modes
  • Future FPGA firmware updates for BPSK/QPSK/AUQPSK
  • Direct connection to Ulyssix Tarsus3 for full PCM processing from RF to bits
  • No filter tuning or preventive maintenance required
  • Optional Single Channel Modulating RF Signal Generator C/S/L/P/IF bands (fully independent)
  • User-friendly and intuitive software program included with optional DEWESoft full Acquisition and Analysis softwar



Technical Specifications:  Click Here

GryphonRF™ Series

Bald Eagle RF-PCIe™

GryphonRF™ Series


2U Telemetry Receiver


  • 2U Rackmount Chassis with two capacitive touch screens.
  • C/S/L/P/IF Band Receiver
  • Single or Dual Receiver configurations
  • FM/SOQPSK
  • Future FPGA firmware updates for BPSK/QPSK/AUQPSK
  • Bit Synchronizer, Frame Syncrhonizer, and Decom
  • Frame Archive capability
  • Ch10 recording, playback, and  UDP broadcast
  • TMoIP
  • Optional Single Channel Modulating RF Signal Generator C/S/L/P/IF bands (fully independent)
  • FPGA-based architecture




Technical Specifications:  Click Here



FM/FM PRODUCTS

Syrinx3™

Syrinx3™ Demux System

Syrinx3™ Demux System


This 3rd generation demodulator board is powered by a INTEL Arria V FPGA where the FPGA firmware is user reconfigurable using Ulyssix supplied FlashBurn software. Ulyssix setup software comes with the card for ease in setup, storage and recall of previous configurations.




Return to Top

Syrinx3™ Demux System

Syrinx3™ Demux System

Syrinx3™ Demux System


The Syrinx3 Demux Digital Demultiplexer System is a DSP based FM demultiplexer system designed around the Syrinx3 Dual FM Demodulator card.  The system can support from two to twelve FM channels in a single 3U chassis.  An optional Hallux3 DAQ12 card digitizes the down-converted signals and outputs a digital PCM stream for digital re-transmission or storage. An optional Hallux3 ModCal twelve channel calibration card can be added to the system for a complete telemetry FM solution.

Hallux3™ Mod Cal

GryphonFM™ Series

GryphonFM™ Series


The Hallux3 ModCal is a twelve channel FM Modulator and Calibrator.  DSP implemented FM Modulators and Multiplexing for use with legacy FM Demodulator System.  FM Calibrator with programmable dwell and step count.


Return to Top

GryphonFM™ Series

GryphonFM™ Series

GryphonFM™ Series


Single, Dual or Quad Demultiplexing unit utilizing the Syrinx3 board. Running a Ulyssix embedded operating system with LCD display and integrated keypad. 19 inch rackmount 2U chassis configuration with dual capacitive touch screens and user upgrade capability.


DATA LINK ANALYZERS

LQTester

GryphonRF™

GryphonRF™

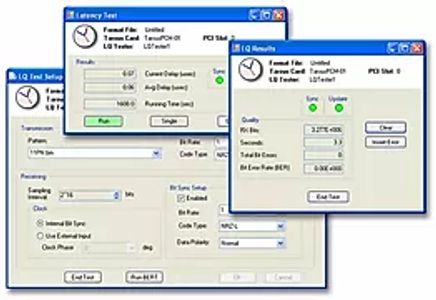

LQTester

Latency and Quality Tester

  • Utilize the Tarsus3™ or BaldEagleRF™ Simulator
  • Precise Bit Error Rate calculations
  • Pre-stored pseudo-random patterns
  • Programmable PCM Simulator setup
  • Measure accurate round-trip link delay
  • Average delay calculated
  • Simple License add-on to existing Hardware
  • Available in both the ALTAIR Software Suite and DEWESoft





Return to Top

GryphonRF™

GryphonRF™

GryphonRF™


Data Link Analyzer w/ Optional Eb/N0 Calibrated Noise Source


  • Data link analyzer test set with calibrated noise source
  • Performs precise bit error rate calculations w/ or w/o noise or jitter
  • 2U Rackmount Chassis with two capacitive touch screens.
  • C/S/L/P/IF Band Receiver FM/SOQPSK
  • C/S/L/P/IF Band Single Channel Modulating RF Signal Generator
  • Future FPGA firmware updates for BPSK/QPSK/AUQPSK
  • Precisely measures round trip link latency
  • Print out detailed Waterfall Diagram of results
  • Controlled via dual capacitive touch screen displays or remotely through Ethernet
  • Use prestored PRN patterns, programmable PCM simulator, or archived data files as PCM source
